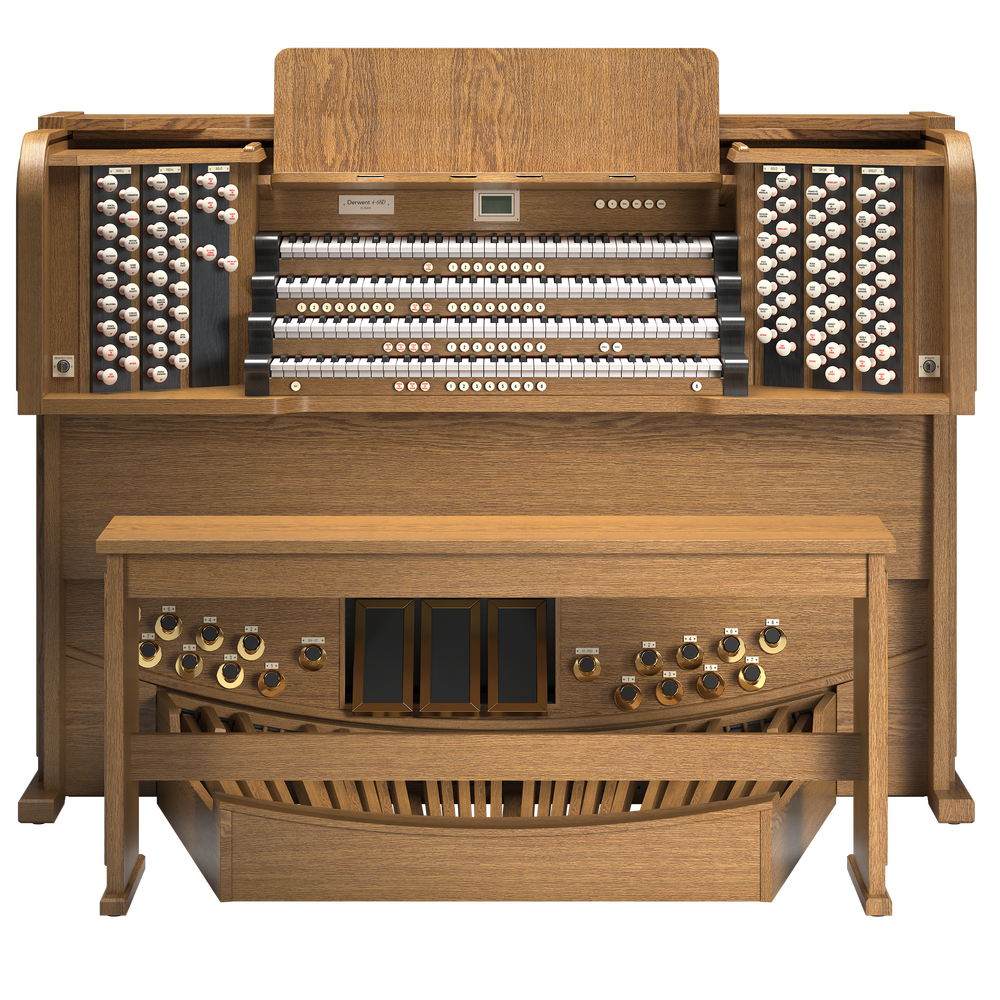

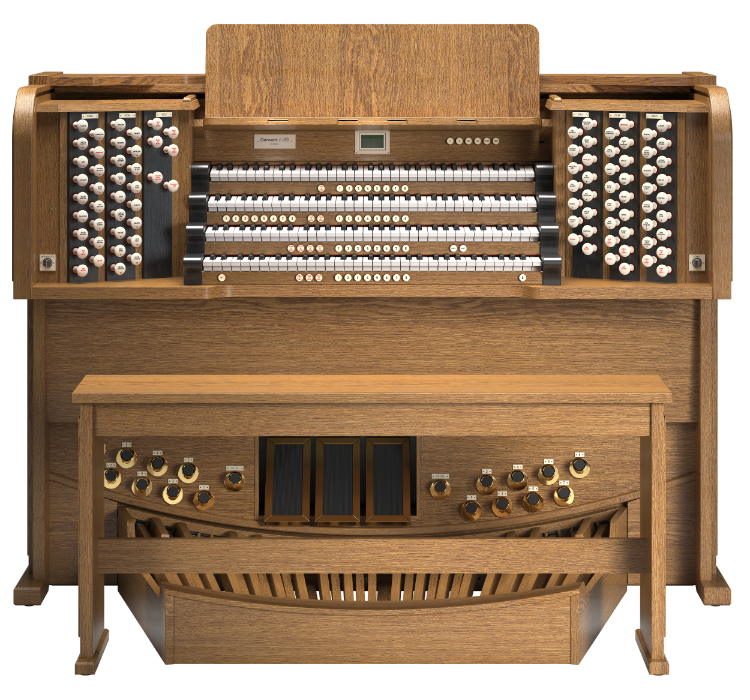

Derwent 4-68D
Derwent 4-68D
As with all our instruments, the Derwent was designed, specified and voiced in close collaboration with Professor Ian Tracey (Liverpool Cathedral). It is the ultimate four manual motorised drawstop English instrument.
This instrument has a generous set of twenty-one amplifiers and speakers (16.3 configuration) for its sixty eight speaking stops delivering a wonderful English sound of the organ in all its glory. It’s what dreams are made of.
Expect nothing but the best with advanced features that come as standard on any Makin organ.
Sound and Amplification
The combination of a single English intonation, using real-time live MultiSamples with one sample for each note of every stop, nineteen channels of amplification (16.3) and twenty-one external speakers we bring the unsurpassed realism of the true pipe organ sound to you.

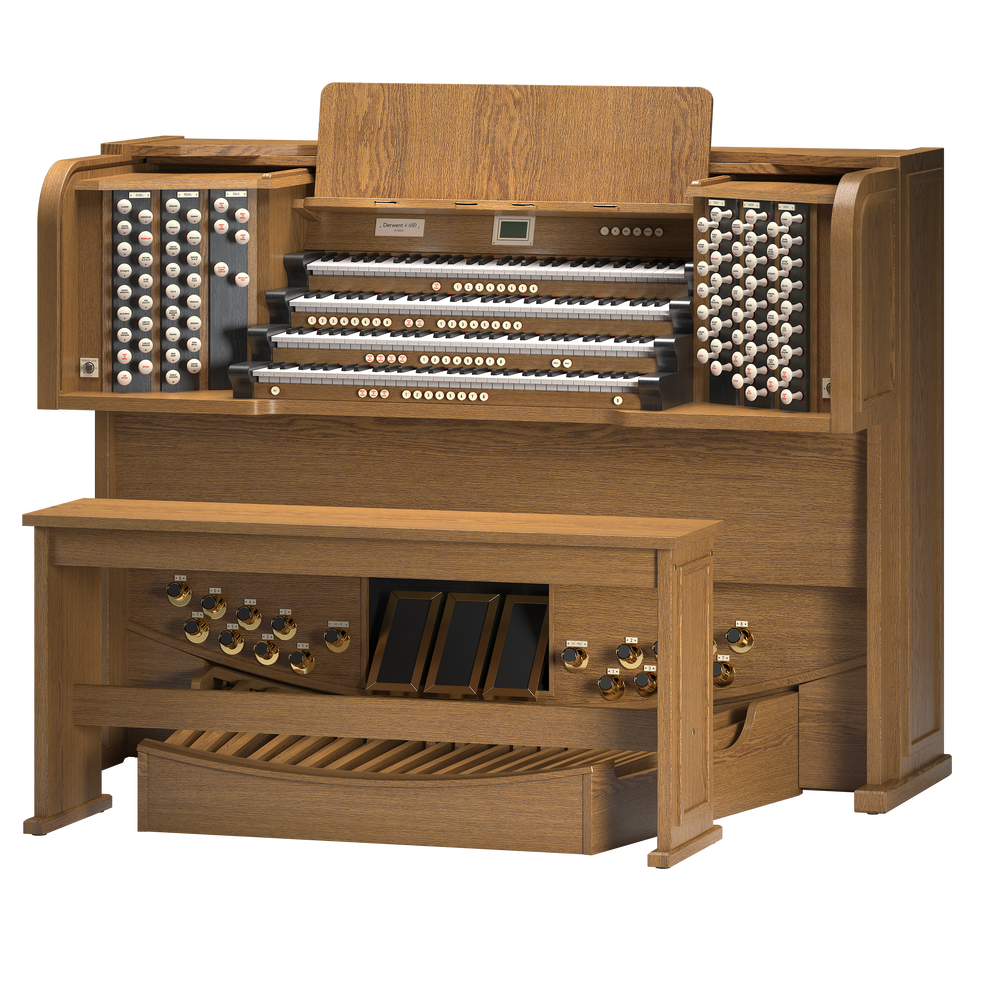

Consoles

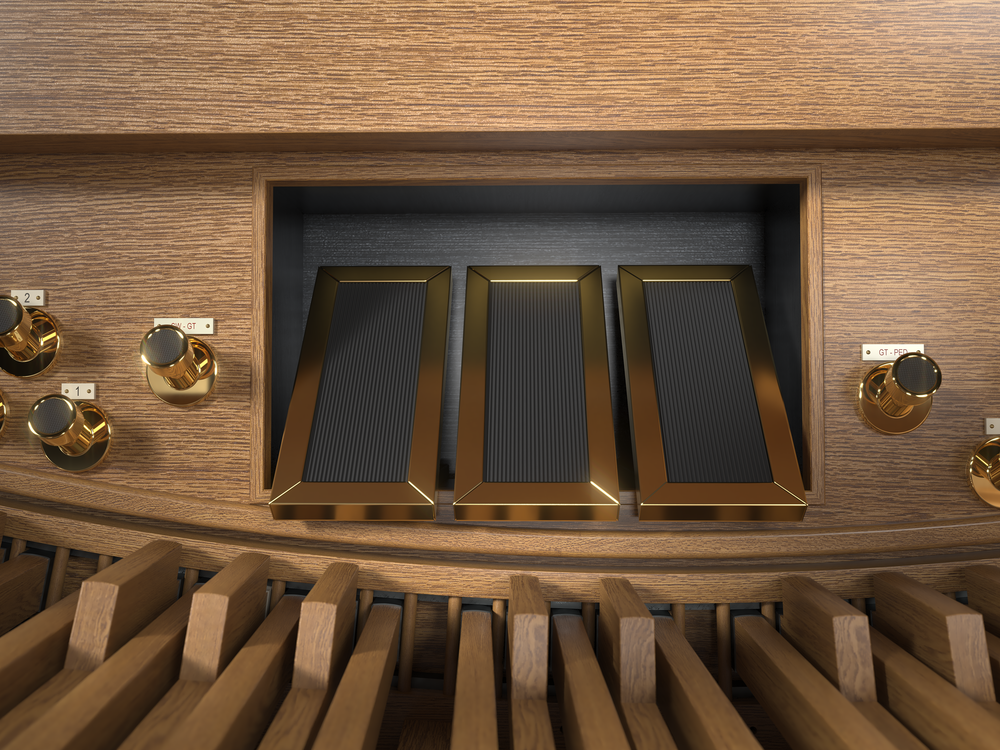

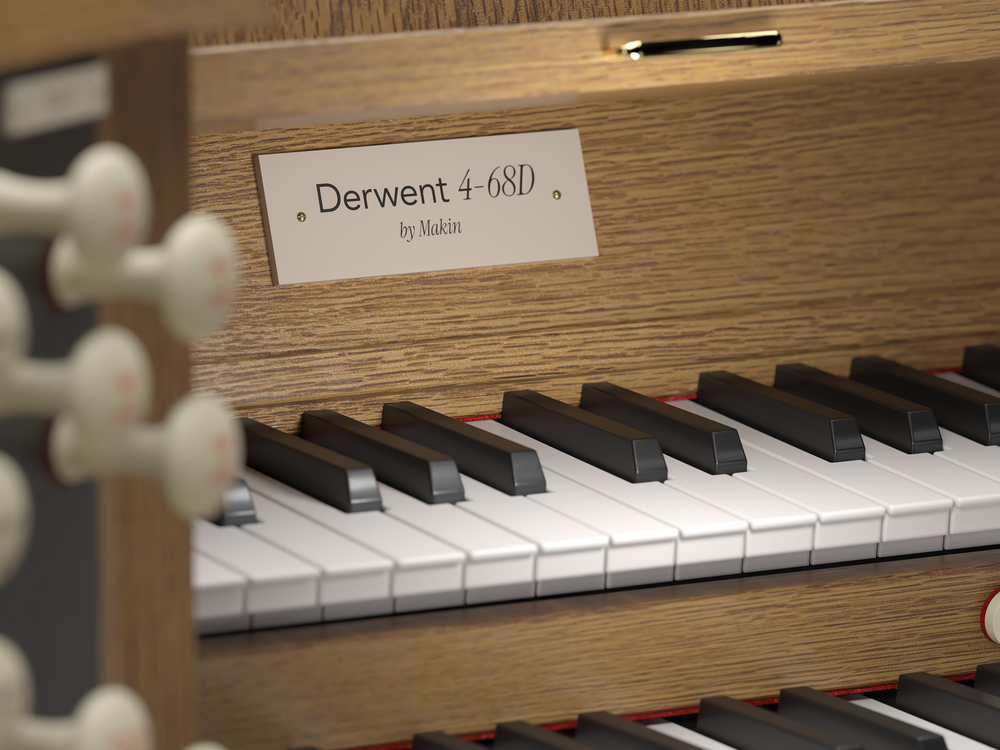

Our consoles are made from slow grown real oak and real oak veneer and are available in many colours. They feature sixty-one note high quality tracker touch acrylic based keyboards (with wood core keyboards optional) and a full size thirty-two note AGO pedal board with all pedals made from solid wood. Our swell pedals are user definable. Our sturdy organ benches can come complete with music storage space or can be height adjustable. The finishing touch is that our music desks have brass clips to hold your sheet music copy in place.

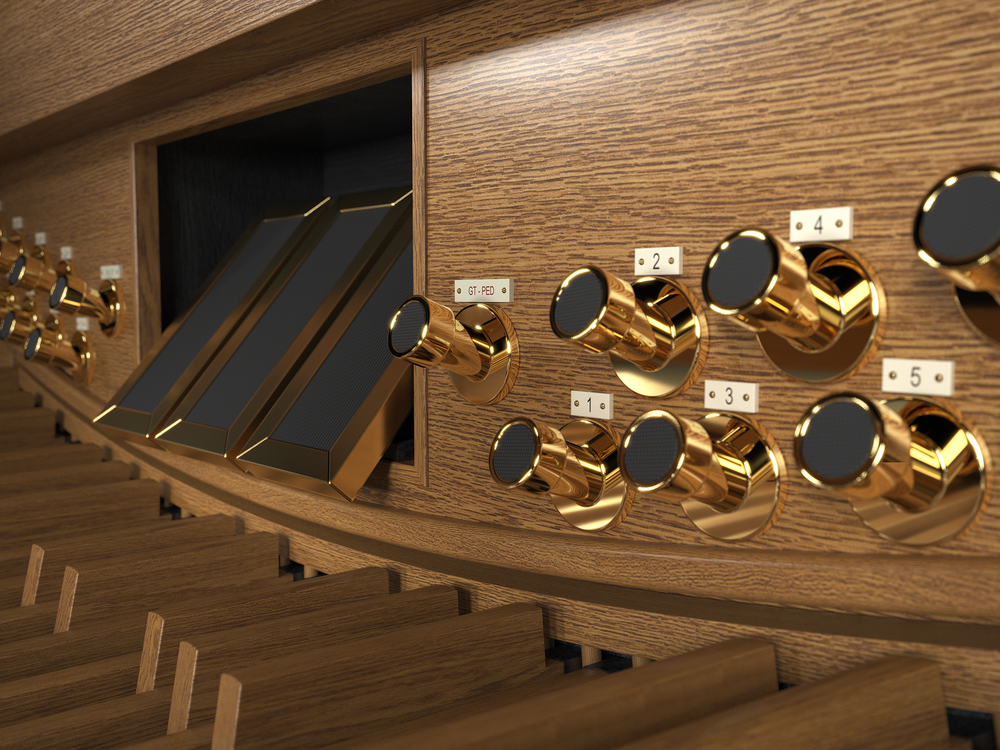

Pistons & Toe Studs

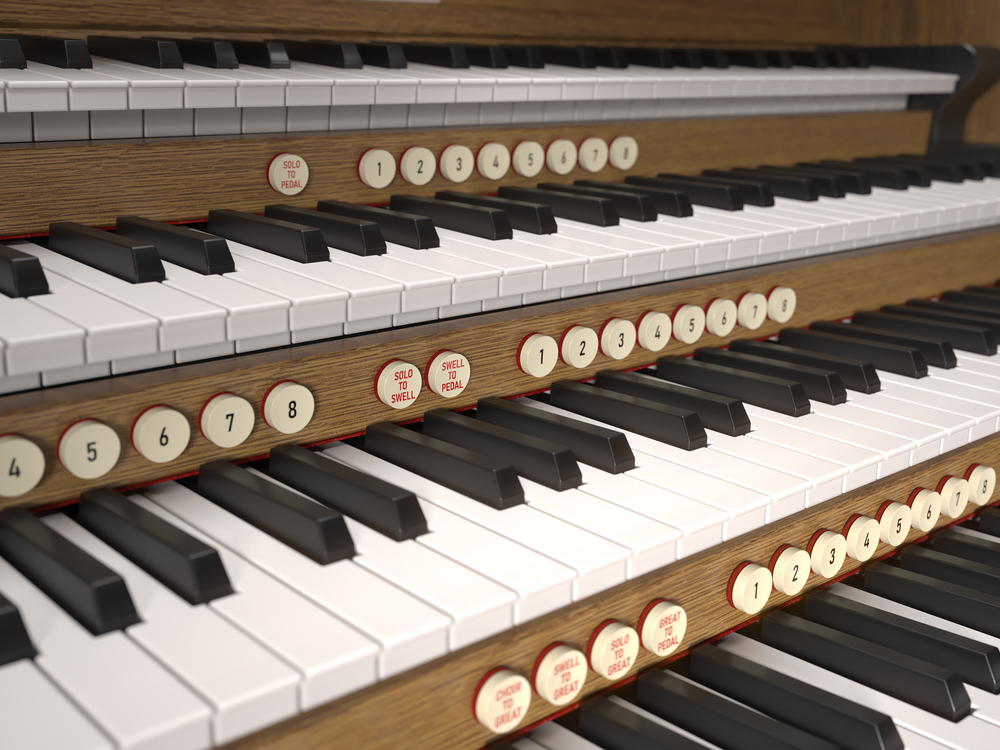

The organ comes with a full set of traditional English divisional and general pistons and toe studs with two hundred and fifty piston memory. In addition, there is a thumb piston for each interdivisional coupler. All of our organs come with the Great and Pedal Combinations Coupled' function which many English organists regard as indispensable.
Other Functions

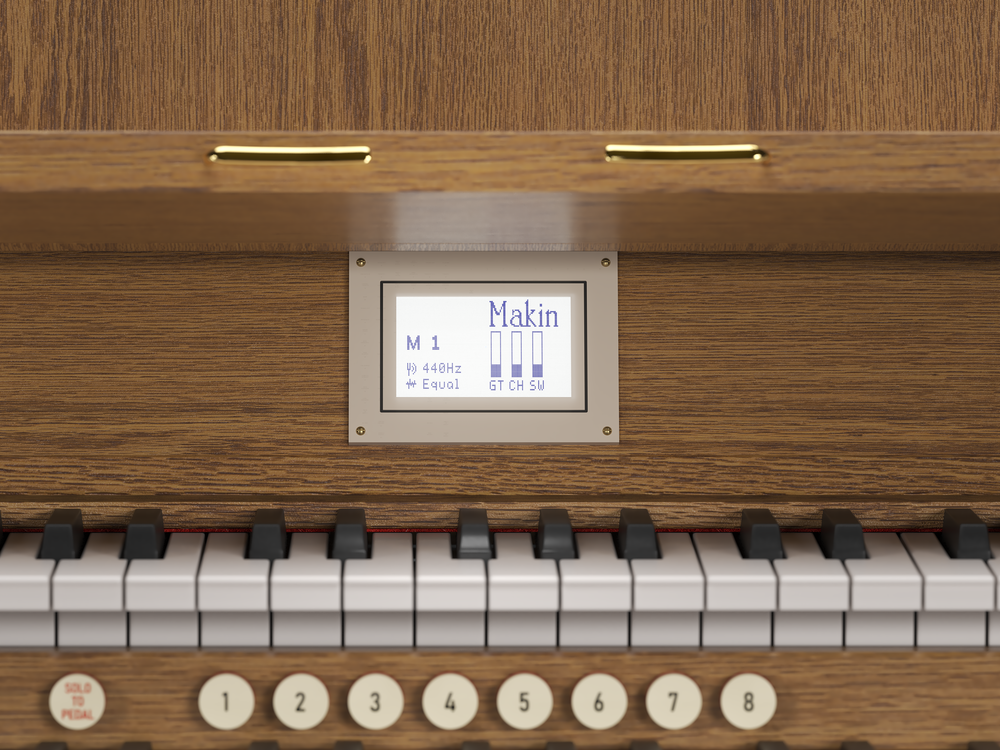

Our easy-to-read screen displays vital information, such as the position of the swell pedal and piston memory position. There is a simple menu system to alter volume, select temperaments, adjust tuning, transposition, reverberation and other functions. MIDI, auxiliary in/out sockets and headphone jack are all provided.
Finally all of our organs come with a manual bass function which adds the pedal notes to help pianists and reluctant organists accompany hymns more successfully.
Dimensions
Height (excluding music desk) 134cm
Width 181cm
Depth 75cm
Depth with Pedalboard 121cm
| Pedal | |
| Double Open Diapason | 32' |
| Contra Violone | 32' |
| Open Wood | 16' |
| Open Metal | 16' |
| Violone | 16' |
| Bourdon | 16' |
| Lieblich Bourdon (Sw) | 16' |
| Principal | 8' |
| Cello | 8' |
| Bass Flute | 8' |
| Choral Bass | 4' |
| Mixture (15.19.22) | III |

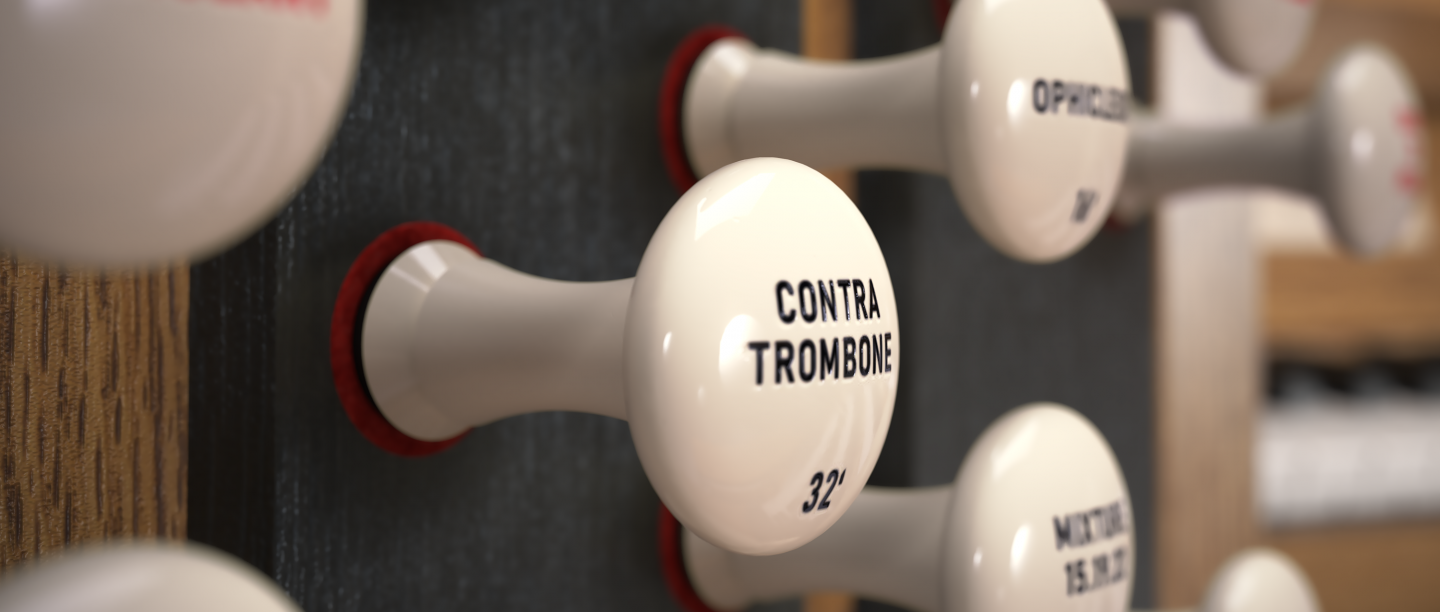

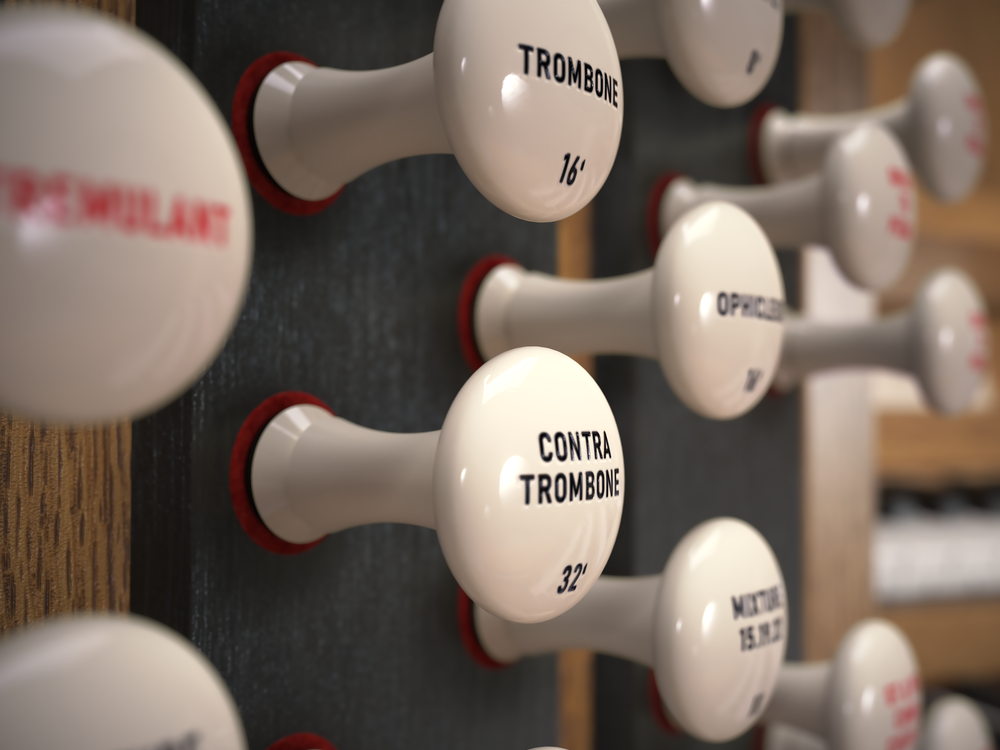

| Contra Trombone | 32' |
| Ophicleide | 16' |
| Trombone | 16' |
| Trumpet | 8' |
| Schalmei | 4' |
| Choir to Pedal | |
| Great to Pedal | |
| Swell to Pedal | |
| Solo to Pedal | |
| Great & Pedal Combs Coupled | |
| Gen on Swell Toe Pistons | |
| Choir (enclosed) | |
| Chimney Flute | 8' |
| Unda Maris II | 8' |
| Gamba | 8' |
| Rohr Flute | 4' |
| Nazard | 2 2/3' |
| Block Flute | 2' |
| Tierce | 1 3/5' |
| Larigot | 1 1/3' |
| Sifflet | 1' |
| Cymbal (29.22.36) | III |
| Corno di Bassetto | 8' |
| Trompette Harmonique | 8' |
| Tremulant | |
| Sub Octave | |
| Octave | |
| Swell to Choir | |
| Solo to Choir | |
| Great | |
| Double Open Diapason | 16' |
| Open Diapason I | 8' |
| Open Diapason II | 8' |
| Hohl Flute | 8' |
| Stopped Diapason | 8' |
| Principal | 4' |
| Harmonic Flute | 4' |
| Twelfth | 2 2/3' |
| Fifteenth | 2' |
| Mixture (19.22.26.29) | IV |
| Sharp Mixture (26.29.33) | III |
| Contra Posaune | 16' |
| Trumpet | 8' |
| Clarion | 4' |
| Choir to Great | |
| Swell to Great | |
| Solo to Great | |
| Swell (enclosed) | |
| Lieblich Bourdon | 16' |
| Geigen Diapason | 8' |
| Lieblich Gedackt | 8' |
| Salicional | 8' |
| Voix Celeste | 8' |
| Geigen Principal | 4' |
| Suabe Flute | 4' |
| Fifteenth | 2' |
| Mixture (15.19.22.29) | IV |
| Oboe | 8' |
| Tremulant | 8' |
| Contra Fagotto | 16' |
| Cornopean | 8' |
| Clarion | 4' |
| Sub Octave | |
| Octave | |
| Solo to Swell | |
| Solo (enclosed) | |
| Quintaton | 16' |
| Harmonic Flute | 8' |
| Concert Flute | 4' |
| Piccolo | 2' |
| Viol d Orchestra | 8' |
| Viole Celeste | 8' |
| Vox Humana | 8' |
| Orchestral Oboe | 8' |
| Tremulant | |
| Diapason Stentor | 8' |
| French Horn | 8' |
| Tuba Mirabilis | 8' |
| Orchestral Trumpet | 8' |
| Sub Octave | |
| Octave | |
